Wilwood 140-15908-R Forged Dynalite-M Front 11" Big Brake Kit, Red Calipers, 1964-1974 GM A/F/X Bod

Wilwood 140-15908-R Forged Dynalite-M 11" Front Hub Big Brake Kit With Red Calipers, 1967-1969 GM F-Body, 1964-1974 GM A-Body & 1968-1974 GM X-Body Buick, Chevrolet, Oldsmobile, Pontiac & GMC With Wilwood 2" Drop Spindle Kit

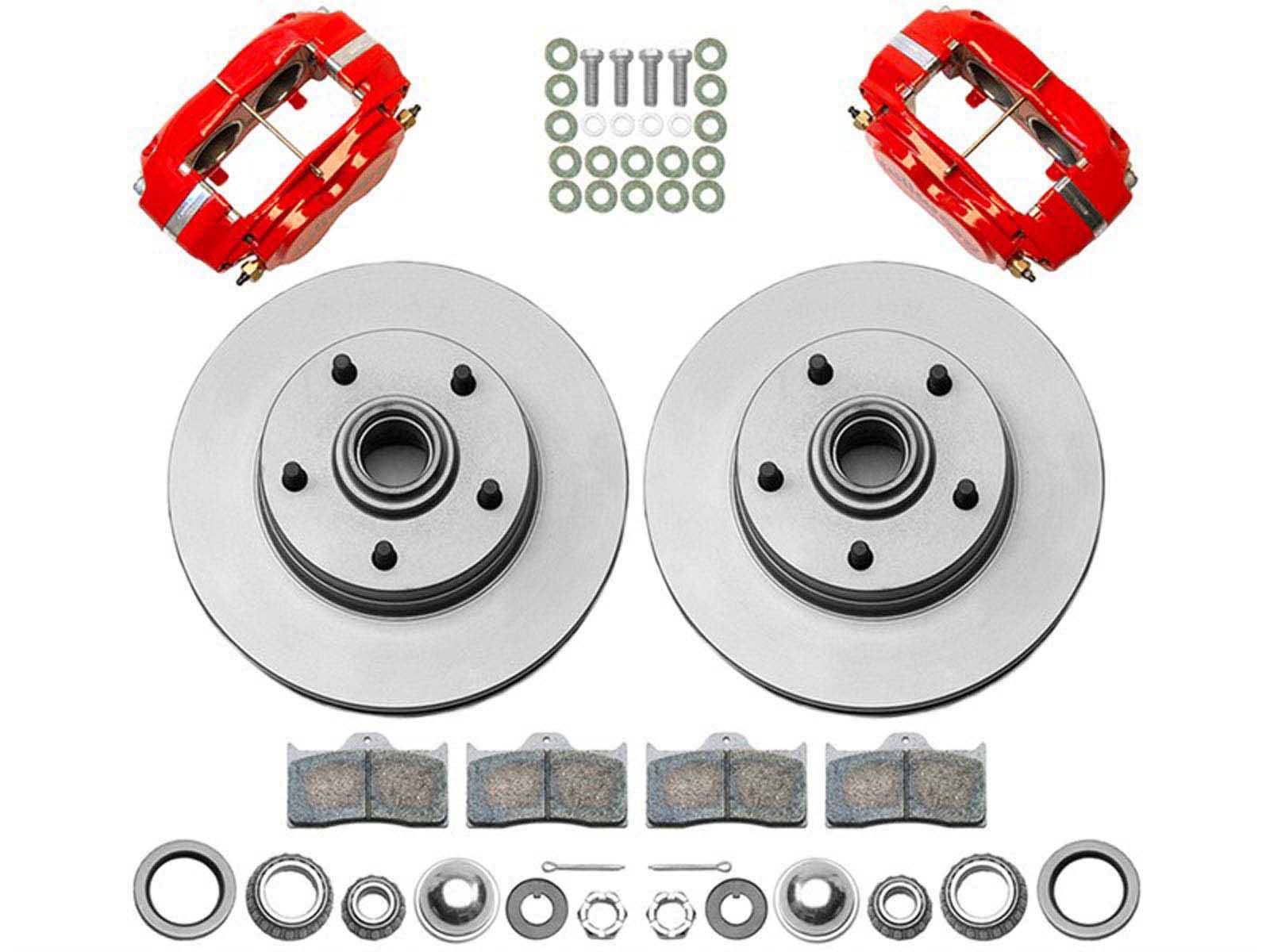

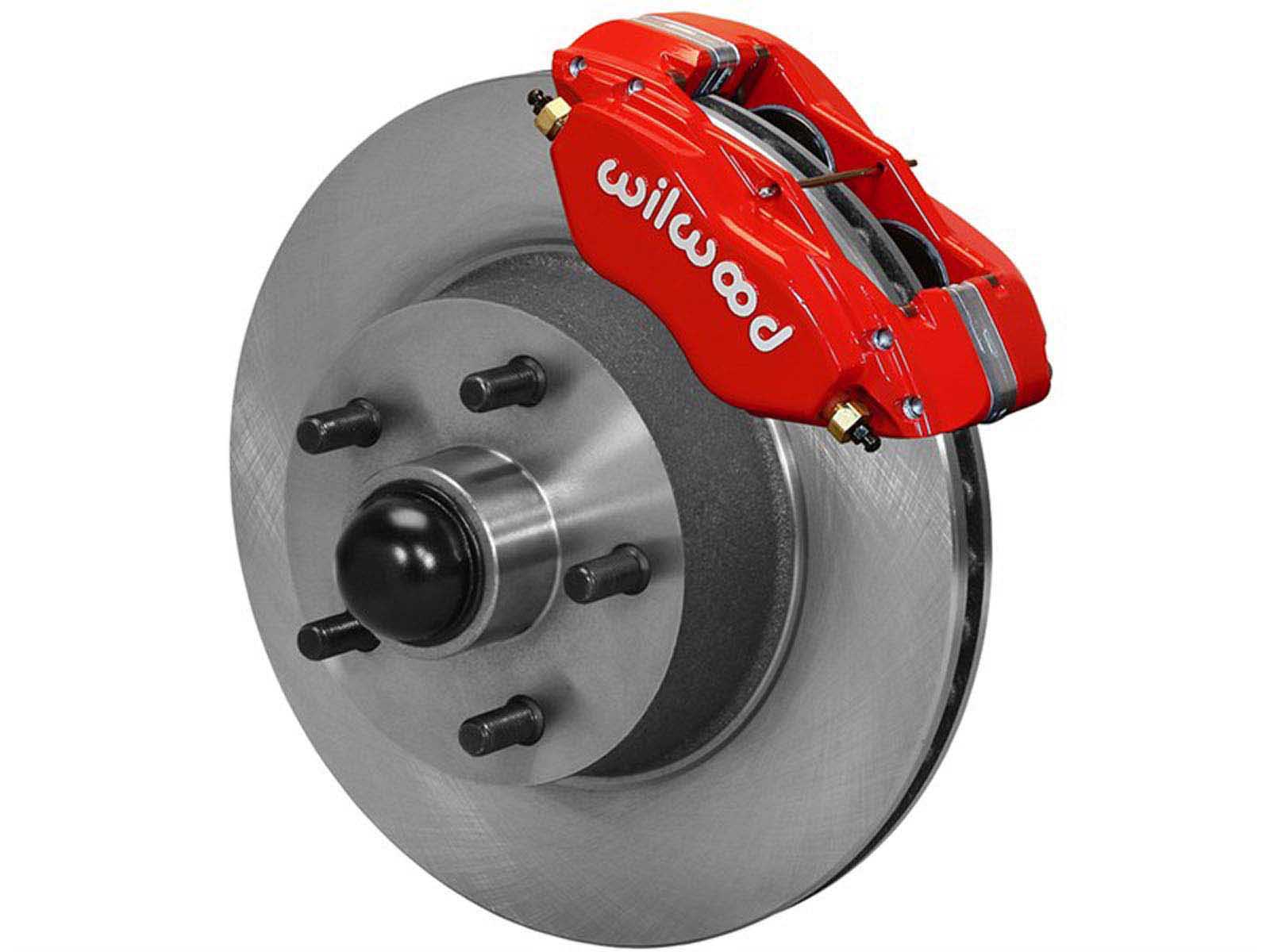

This FDL-M Classic Style Kit is designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles. FDL-M Classic Style Kits feature 11.00", 1 Piece Irom Rotor and Hub assemblies, Forged Dynalite-M 4-piston calipers to deliver the ultimate combination for braking power. Built exclusively for 14” and larger wheels, FDL-M Classic Style enhance tire and suspension upgrades on street and track machines. The Forged Dynalite-M is the strongest calipers in the class, with weights starting at 2.80 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.  Wilwood’s OEM style hub and rotor assemblies. These rotors were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the market place. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Designed as a cost effective alternative to our standard three piece hub and rotor assemblies, it also lends further utility to kit designs.  Kits come complete with calipers, rotors, hub assembly, brackets and hardware. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood Flexline Brake Line Kit # WIL-220-7699.

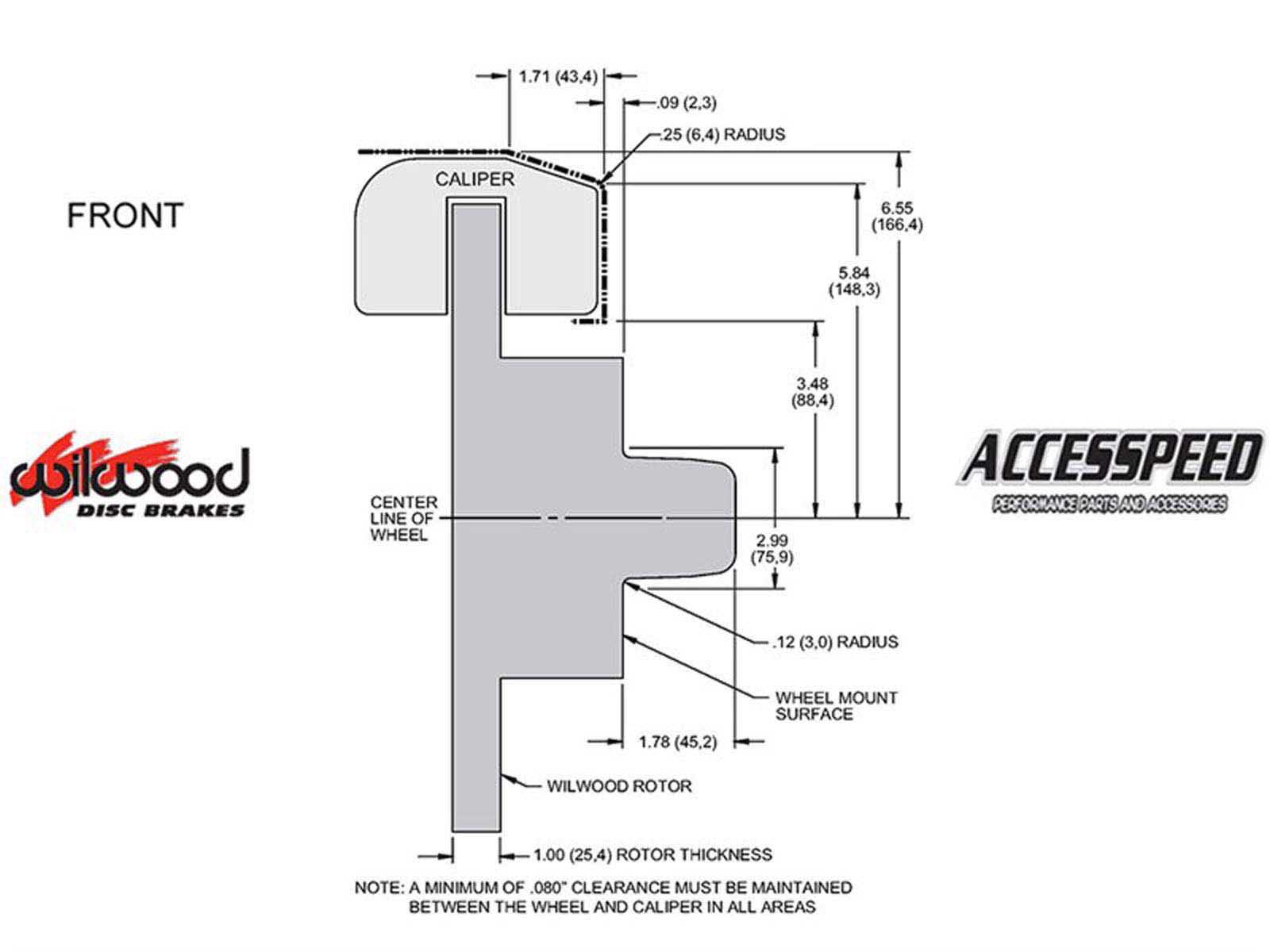

*This Brake Kit may require 14-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

THIS BRAKE KIT HAS A HUB OFFSET OF: +.47  This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

This kit fits the following vehicles:

Buick Apollo 1973-1974 Buick Gran Sport 1965-1967 Buick GS 1970-1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1970-1972 Buick Skylark 1964-1966 Buick Skylark 1967-1970 Buick Skylark 1967-1972 Buick Special 1964-1966 Buick Special 1967-1969 Buick Sportwagon 1964-1966 Buick Sportwagon 1967-1970 Buick Sportwagon 1967-1972 Chevrolet Camaro 1967-1969 Chevrolet Camaro 1968-1969 Chevrolet Chevelle 1964-1966 Chevrolet Chevelle 1967-1972 Chevrolet Chevy II 1964-1966 Chevrolet Chevy II 1967-1968 Chevrolet El Camino 1964-1966 Chevrolet El Camino 1967-1972 Chevrolet Monte Carlo 1970-1972 Chevrolet Nova 1967-1974 GMC Sprint 1971-1972 Heidts Pro-G Oldsmobile 442 1964-1966 Oldsmobile 442 1967-1972 Oldsmobile 442 1970-1972 Oldsmobile Cutlass 1964-1966 Oldsmobile Cutlass 1967-1972 Oldsmobile Cutlass 1970-1972 Oldsmobile Cutlass Supreme 1967-1972 Oldsmobile Cutlass Supreme 1970-1972 Oldsmobile F85 1964-1966 Oldsmobile F85 1967-1969 Oldsmobile F85 1967-1972 Oldsmobile F85 1970-1972 Oldsmobile Omega 1973-1974 Oldsmobile Vista Cruiser 1964-1966 Oldsmobile Vista Cruiser 1967-1972 Pontiac Acadian 1964-1966 Pontiac Acadian 1967-1971 Pontiac Beaumont 1964-1966 Pontiac Beaumont 1967-1969 Pontiac Firebird 1967-1969 Pontiac Grand Prix 1969 Pontiac Grand Prix 1969-1972 Pontiac GTO 1964-1966 Pontiac GTO 1967-1971 Pontiac GTO 1967-1972 Pontiac LeMans 1964-1966 Pontiac LeMans 1967-1972 Pontiac Tempest 1964-1966 Pontiac Tempest 1967-1972 Pontiac Ventura II 1971-1974

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
