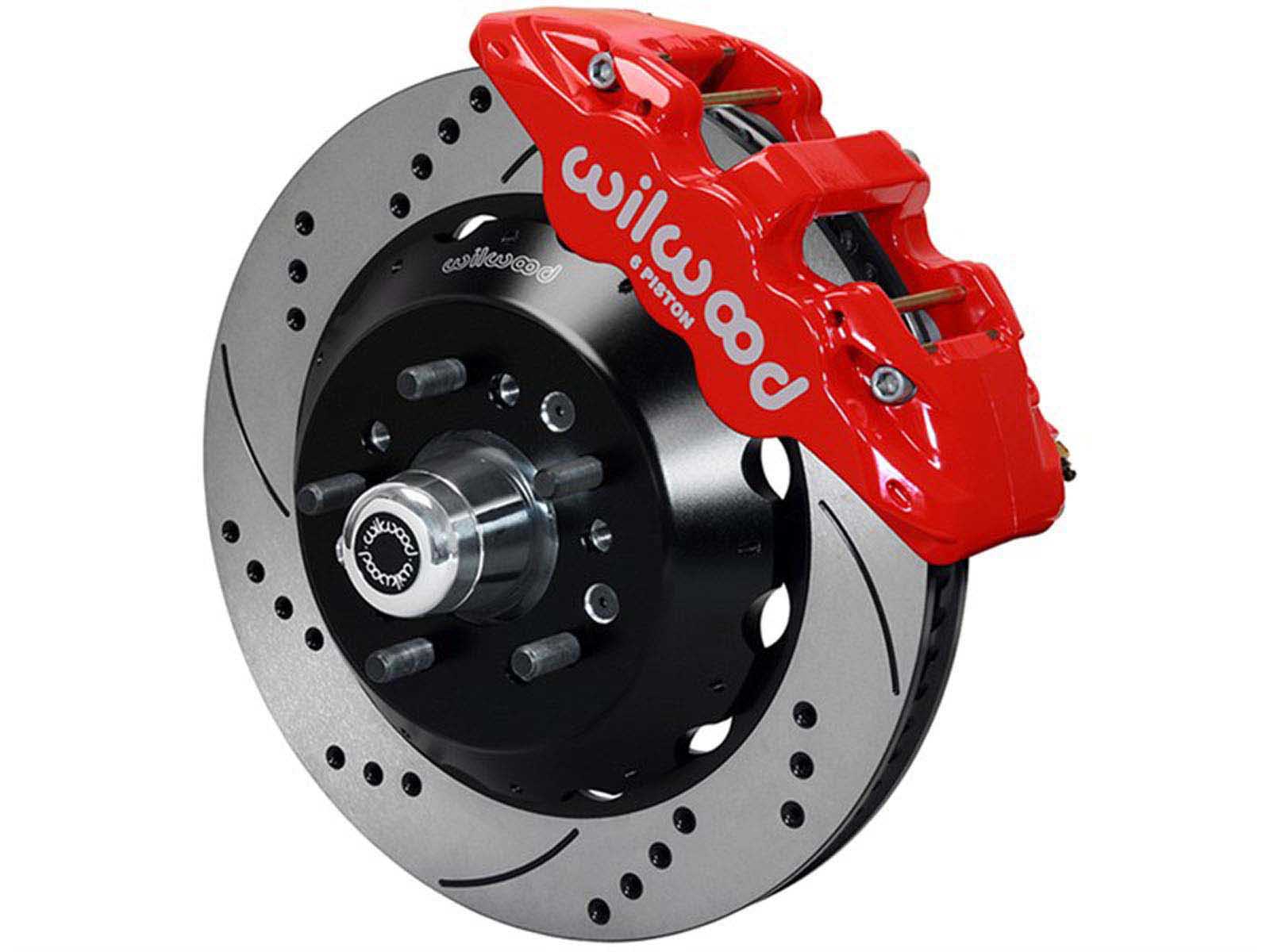

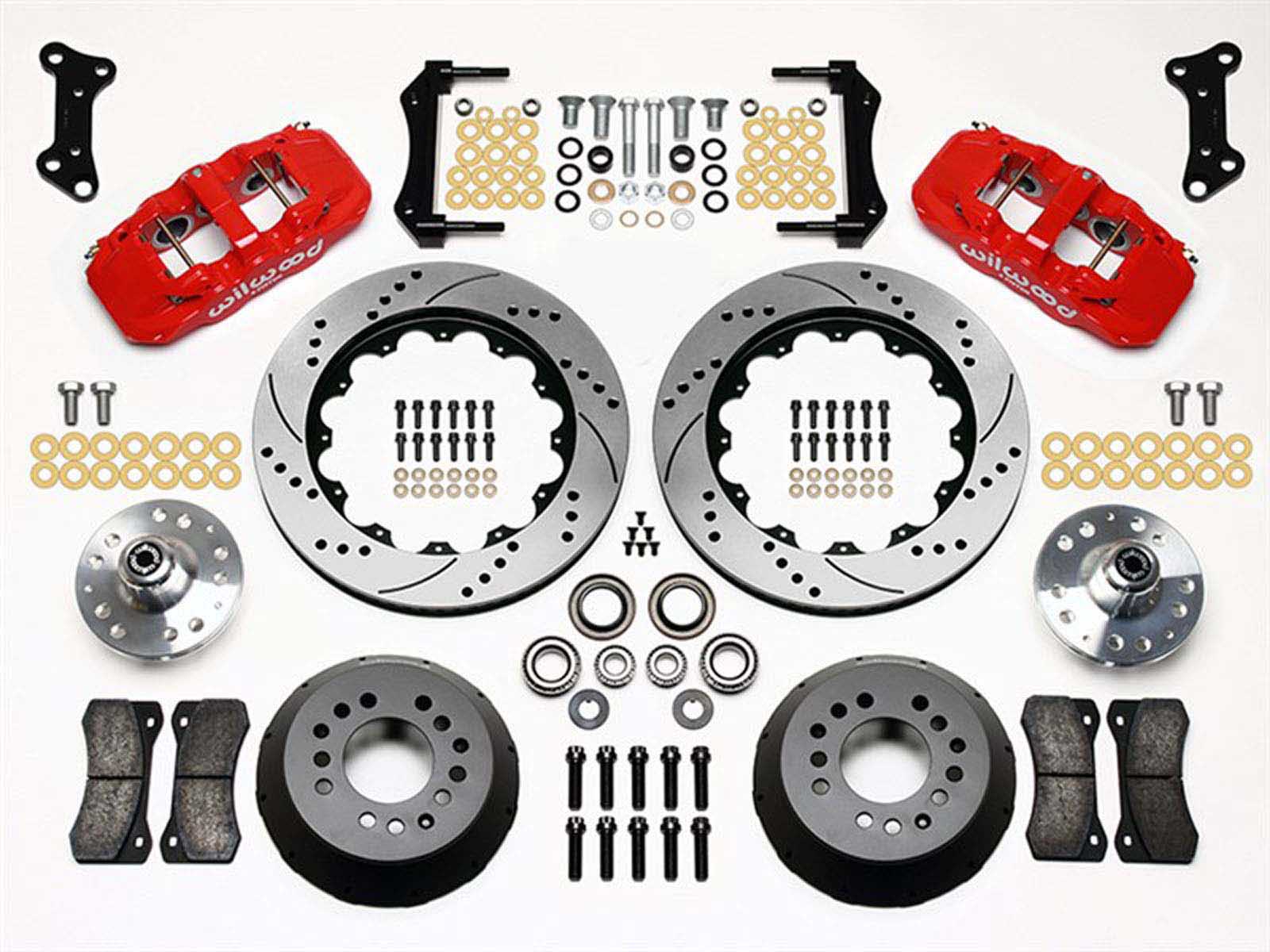

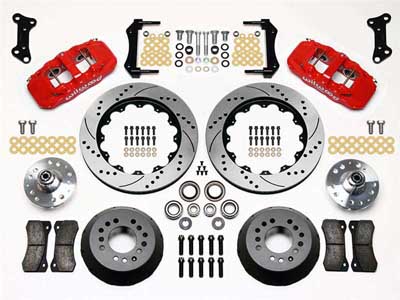

Wilwood 140-15943-DR AERO6 14in Front Big Brake Kit, Drilled, Red, 1963-87 GM C10/C15 W/Drop Spindl

Wilwood 140-15943-DR AERO6 14-in Front Big Brake Kit With Red Calipers and Drilled Rotors For 1963-1987 GM C10/C15 With Drop Spindles

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. These kits are for thepopular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new 1 Piece Iron Drop Pro Spindles. AERO6 Big Brake Kits provide big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” rotors provide maximum cooling for sustained high heat durability. This kit contains hubs with 5 x 4.75” and 5 x 5.00” bolt circle. See below for brake line kit options.

THIS BRAKE KIT WILL NOT FIT OEM FACTORY SPINDLES.

BRAKE LINE OPTIONS:

Wilwood Flexline Brake Line Kit # WIL-220-12168

• 1963-1966 Chevrolet C10 Panel, C10 Pickup & Suburban
• 1963-1966 GMC 1000 Series & Suburban

Wilwood Flexline Brake Line Kit # WIL-220-7056.

• 1967-1972 Chevrolet C10 Pickup, Panel & Suburban
• 1967-1970 GMC C15/C1500 Pickup & Suburban
• 1970-1972 Chevrolet Blazer
• 1970-1972 GMC Jimmy

Wilwood Flexline Brake Line Kit # WIL-220-11237.

• 1971-1974 GMC C15/C1500 Suburban
• 1971-1986 GMC C1500 Pickup
• 1973-1982 Chevrolet Blazer
• 1973-1982 GMC Jimmy
• 1973-1986 Chevrolet C10 Pickup & Suburban
• 1975-1978 GMC C15 & Suburban
• 1979-1986 GMC C1500 Suburban
• 1987 Chevrolet R10 Pickup & Suburban
• 1987 GMC R1500 Pickup & Suburban

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
