Wilwood 140-17041 Rear UTV4 Gray Ano Race Big Brake Kit for 2017-2023 Can-Am Maverick X3

Wilwood 140-17041 Rear UTV4 Gray Ano Race Big Brake Kit for 2017-2023 Can-Am Maverick X3

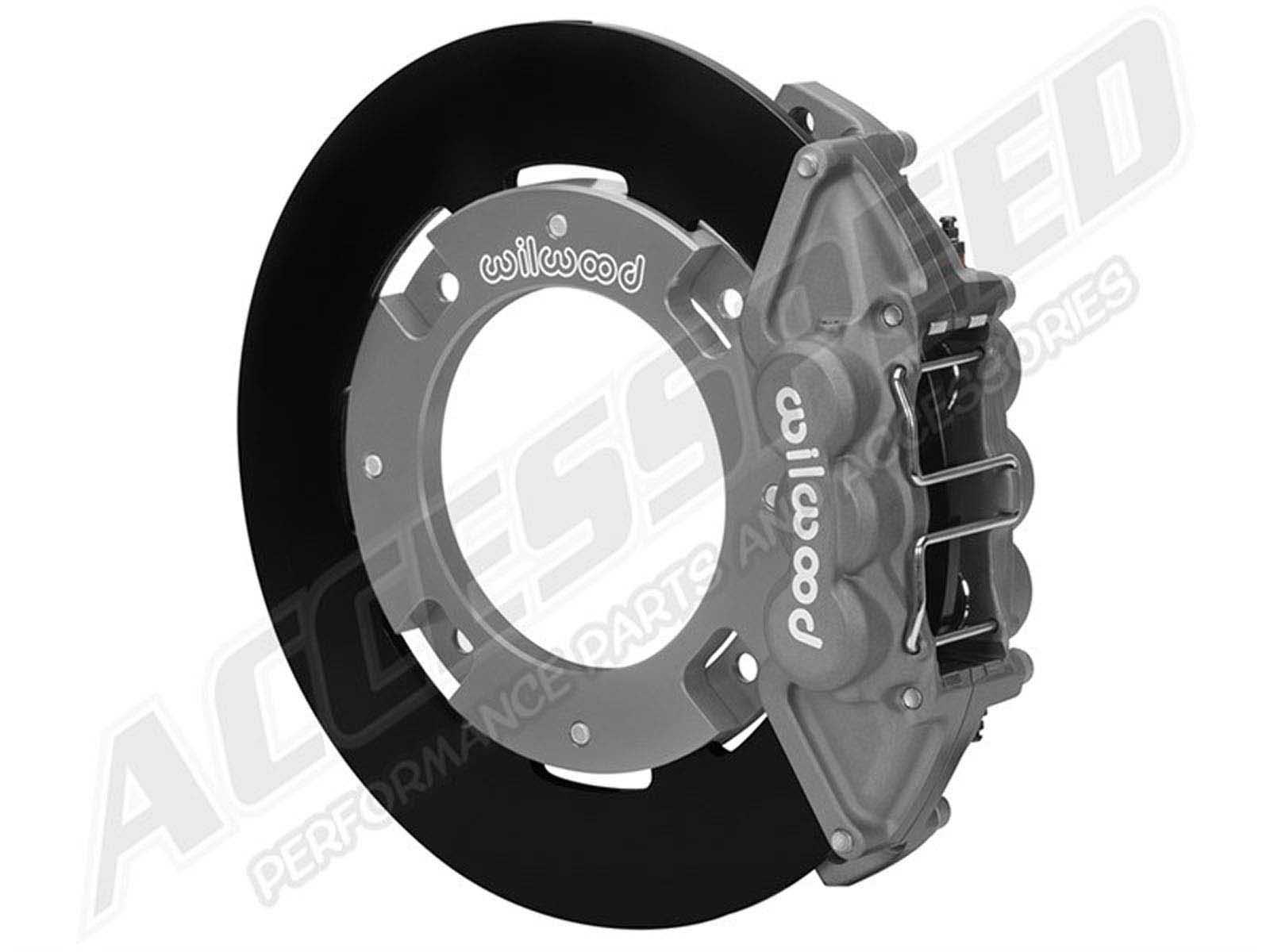

Accesspeed is excited to offer Wilwood’s racing big brake kits to the Can-Am Maverick X3 UTV. Wilwood’s matched front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. These Race Brake Kits combine fixed-mount multi-piston calipers for greater clamping force, BP-20 (high-friction) brake pads, and large-diameter floating rotors for more brake torque to improve braking on higher-powered UTVs. Forged aluminum differential-bore UTV4 or UTV6 piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. Durable steel rotors are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain. The braking performance increase Accesspeed has seen is undeniable!

KIT FEATURES:

• Larger, thicker, dynamically mounted 11.25” x 0.25” steel rotors eliminate knockback and reduce thermal distortion; available plain face or drilled.
• Rigid, stress-flow net forged aluminum, opposed stainless piston calipers with strengthened body reduces deflection and increases clamping efficiency.
• Differential bore caliper pistons provide consistent engagement and increase pad life.
• UTV6 and UTV4 calipers offered in Type III Ano Gray color.

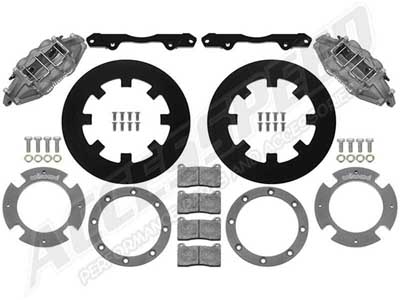

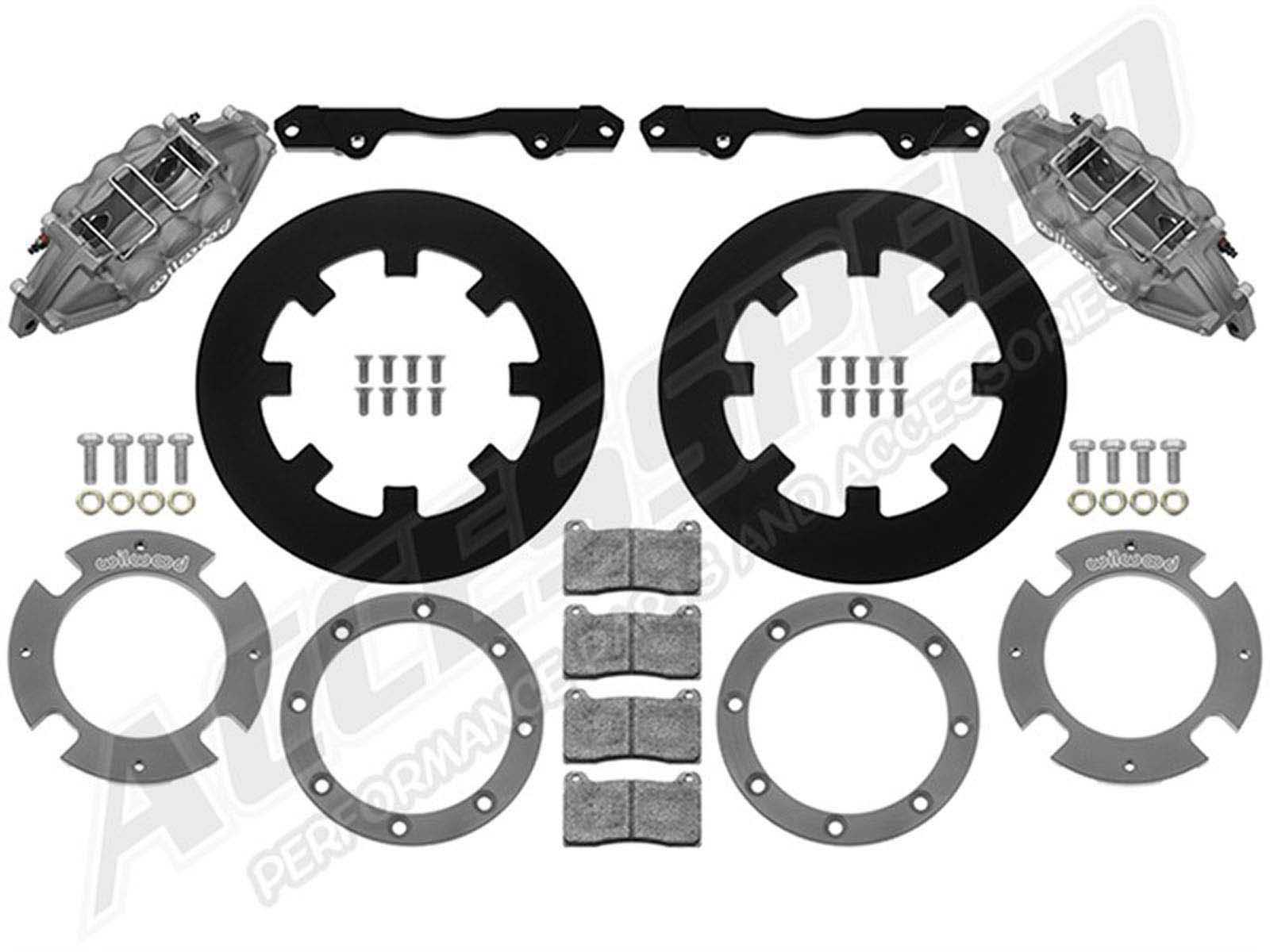

• Race-spec kits come complete with fade-resistant BP-20 or PolyMatrix E brake pads, banjo bolt and crush washers to connect to factory lines.
• Fully compatible with factory master cylinder, ABS, and pedals.
• Kits fit most wheels 15” and larger.

Notes

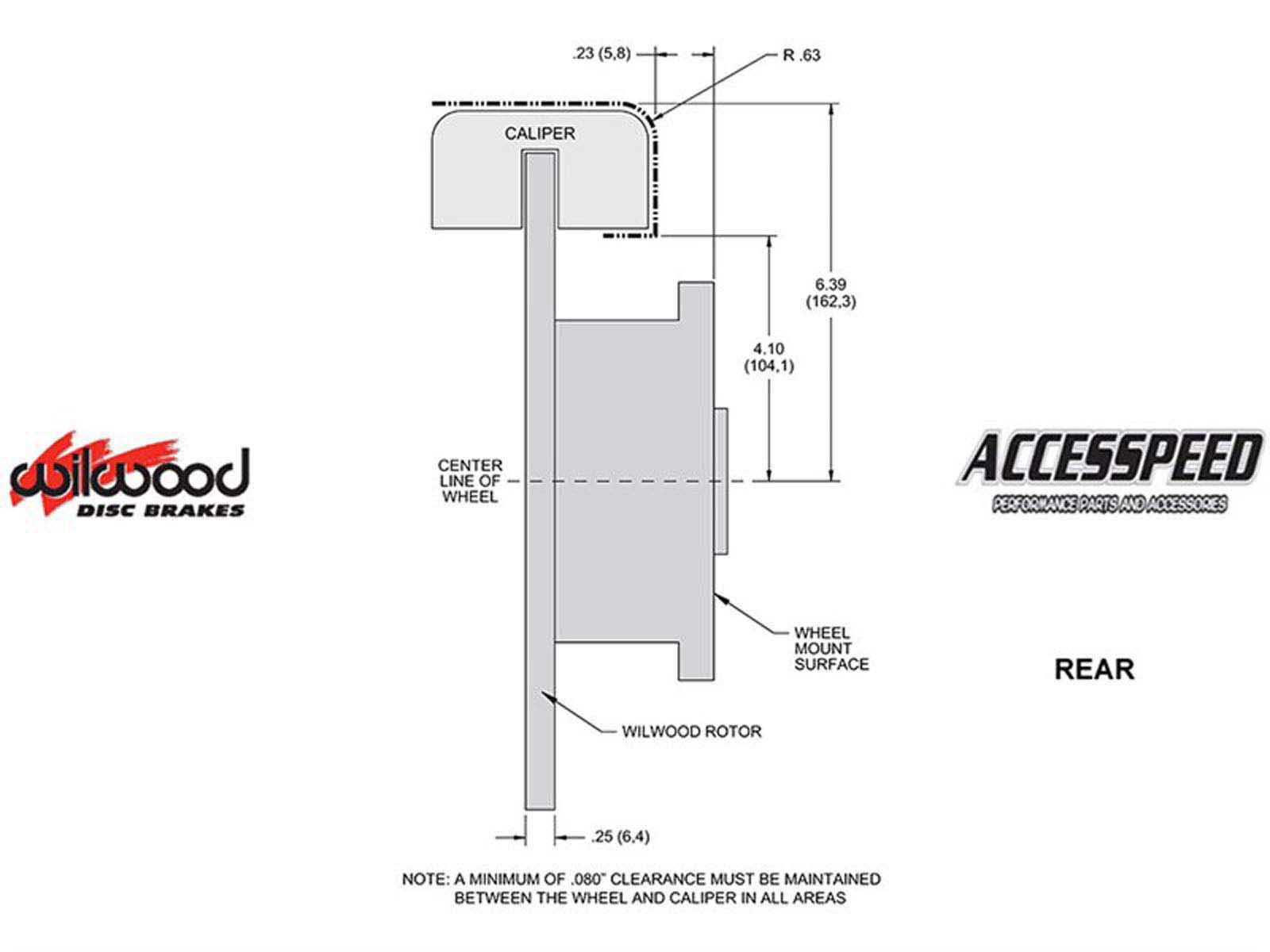

*This Brake Kit may require 14-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to verify wheel to caliper clearance.
