Wilwood 140-7148-DR Dynalite 12" Rear Big Brake Kit, Drilled, Red, 1993-1997 Camaro/Firebird

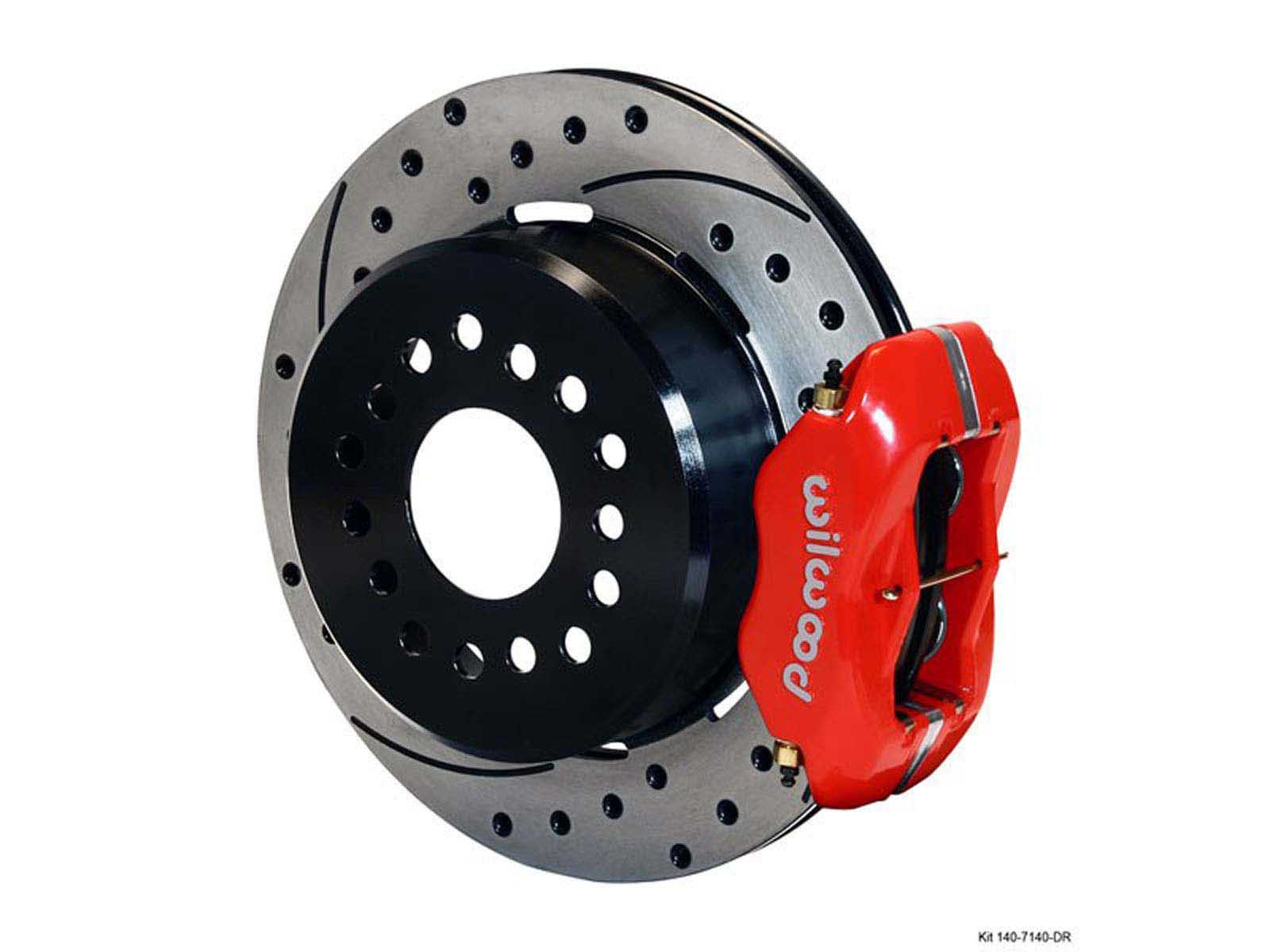

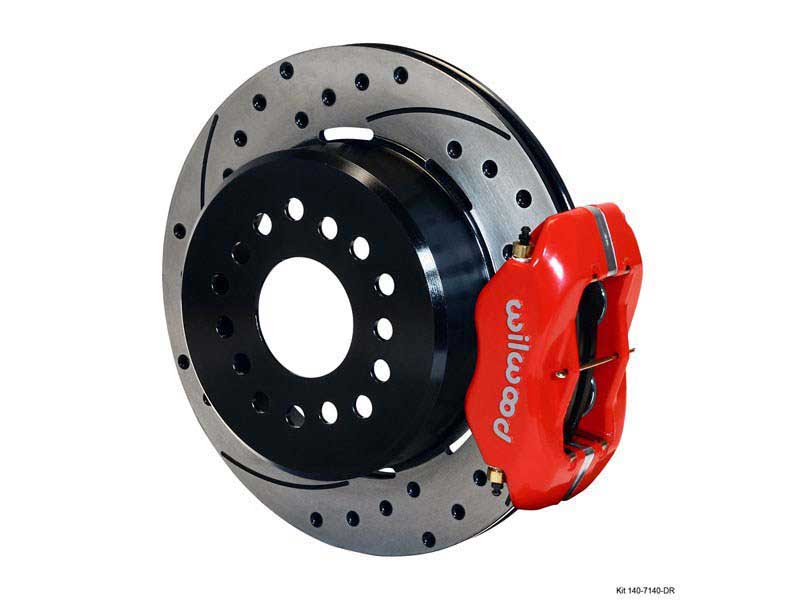

Wilwood 140-7148-DR Forged Dynalite Pro Rear 12.19" Big Brake Kit With Red Calipers and Drilled Rotors, Fits 1993-1997 Camaro and Firebird

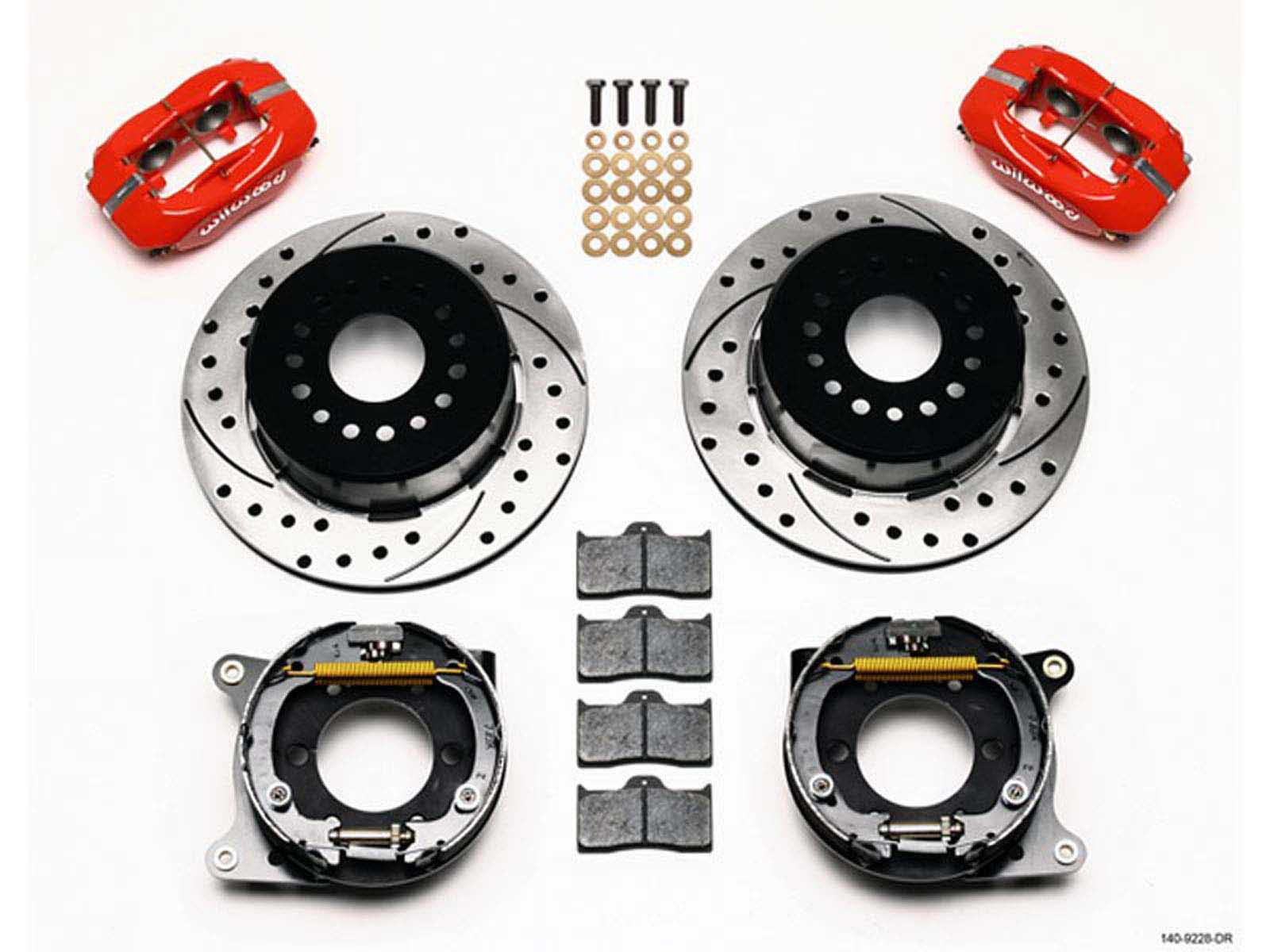

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. Brake Kit does not include flex lines. Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately based on your vehicle year, make and model.

• This kit requires Wilwood Flexline for proper function. Use Kit # WIL-220-6746
• This kit requires an extended rear parking brake cable for proper function. Use Kit # WIL-330-9371
• For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications.
• Hats drilled for 7/16", 1/2" & 12mm studs.

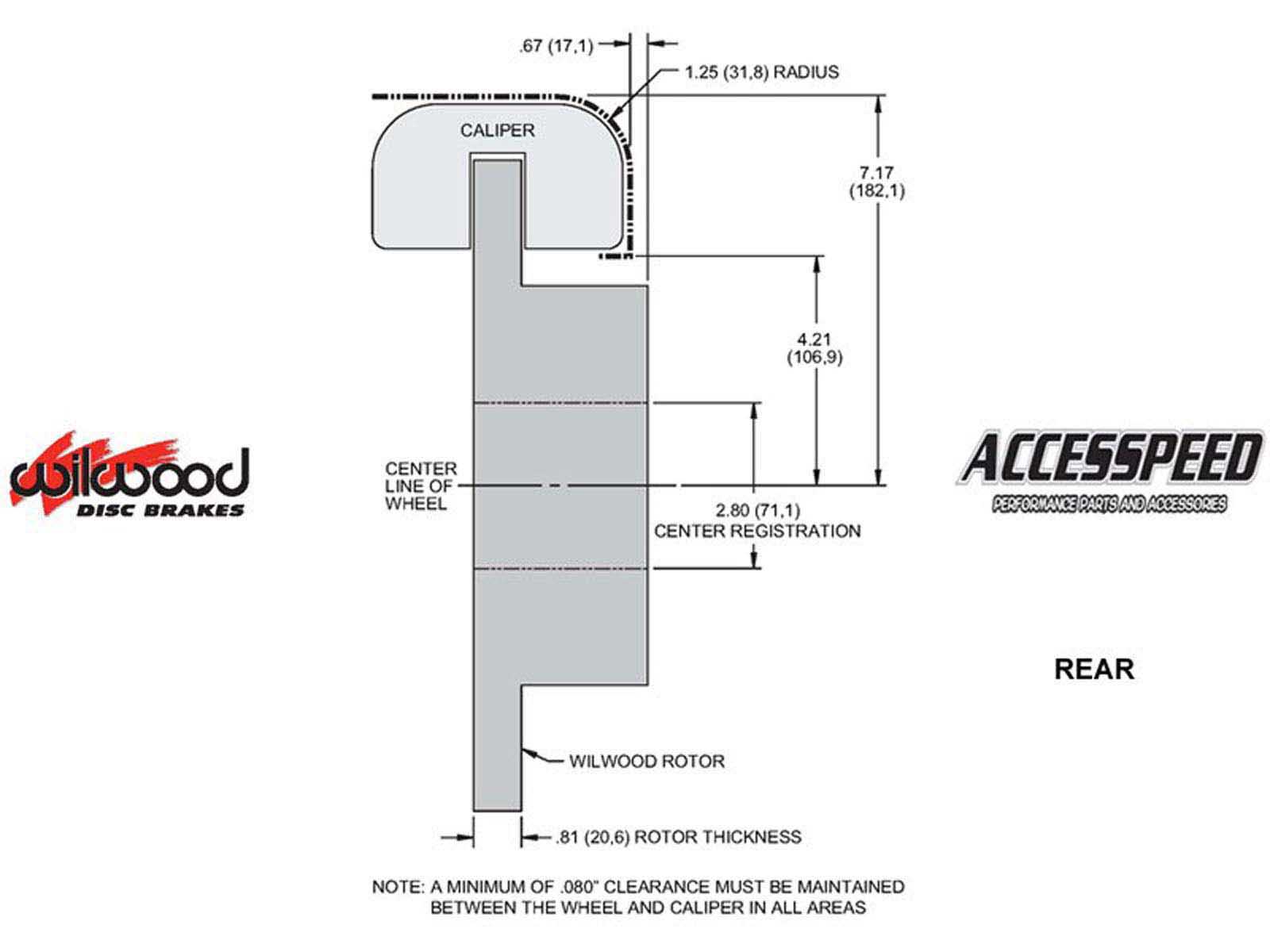

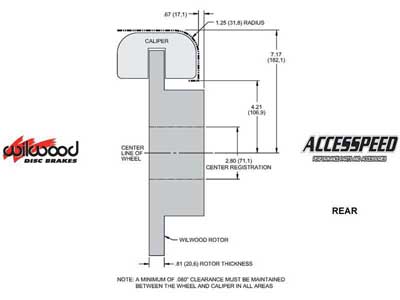

• Kit may fit some 15" wheels. Check wheel clearance diagram image below before purchase.
• Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.

Notes

This system includes Red Calipers. Please see additional listing for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
