Wilwood 140-8582-DR Dynalite 12.19" Front Brake Kit Drilled Red, 1973-1978 GM Cars W/11" OEM Spindl

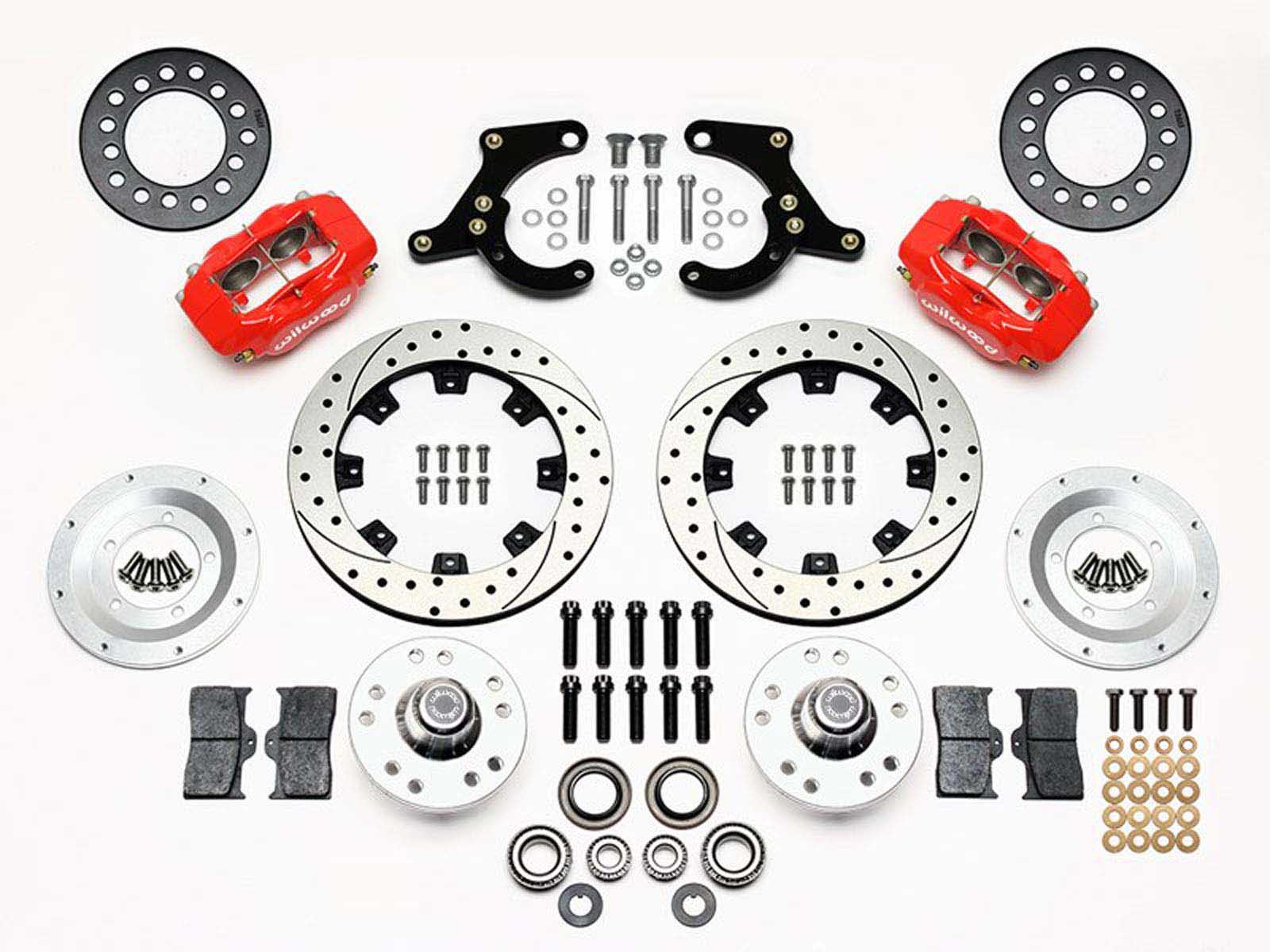

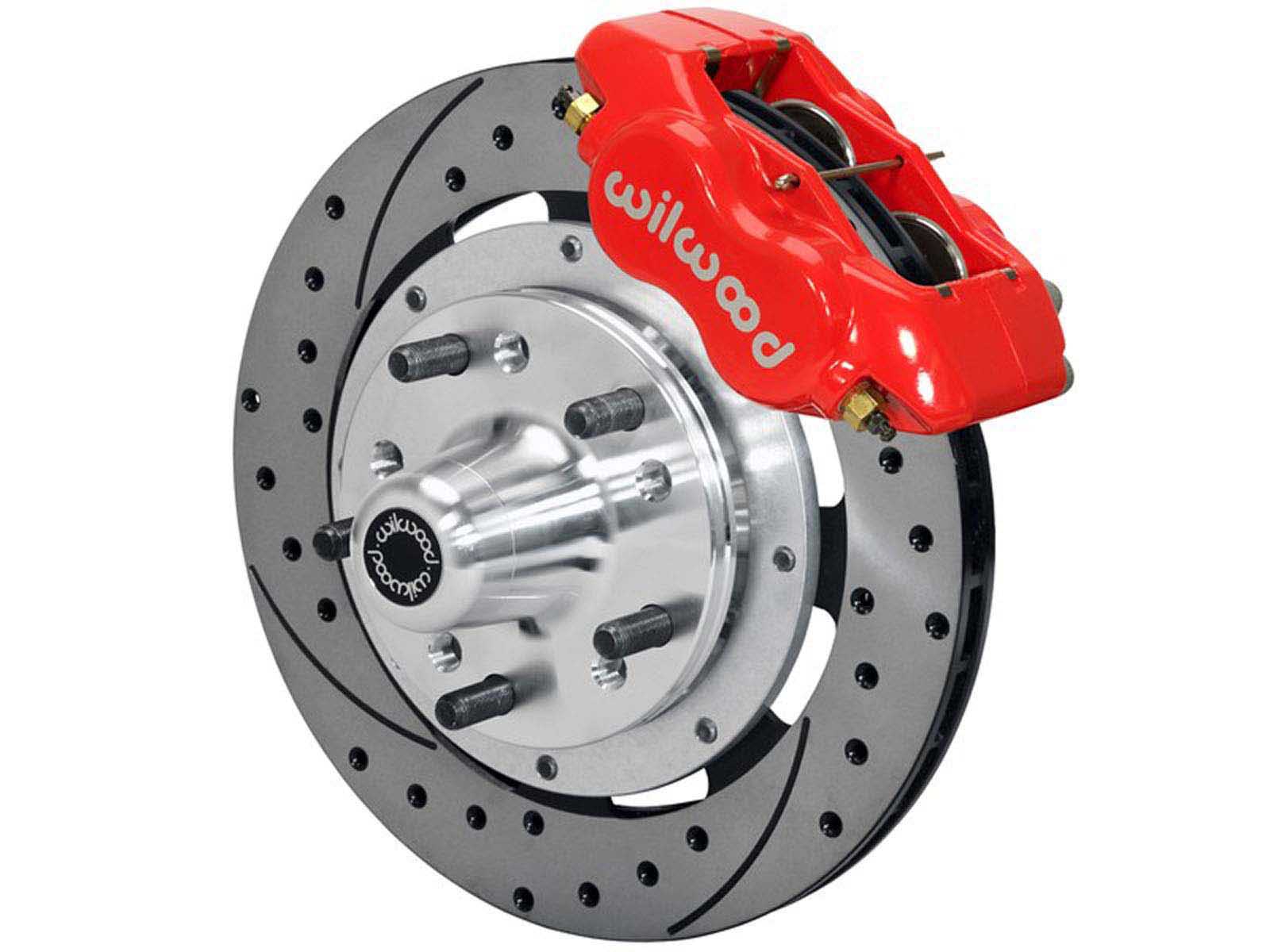

Wilwood 140-8582-DR Forged Dynalite 12.19" Front Hub Big Brake Kit With Drilled Rotors and Red Calipers, 1970-1978 F-Body & 1973-1978 Buick, Chevrolet, Oldsmobile, Pontiac & GMC W/11" OEM Spindle

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood Flexline Brake Line Kit # WIL-220-10509.

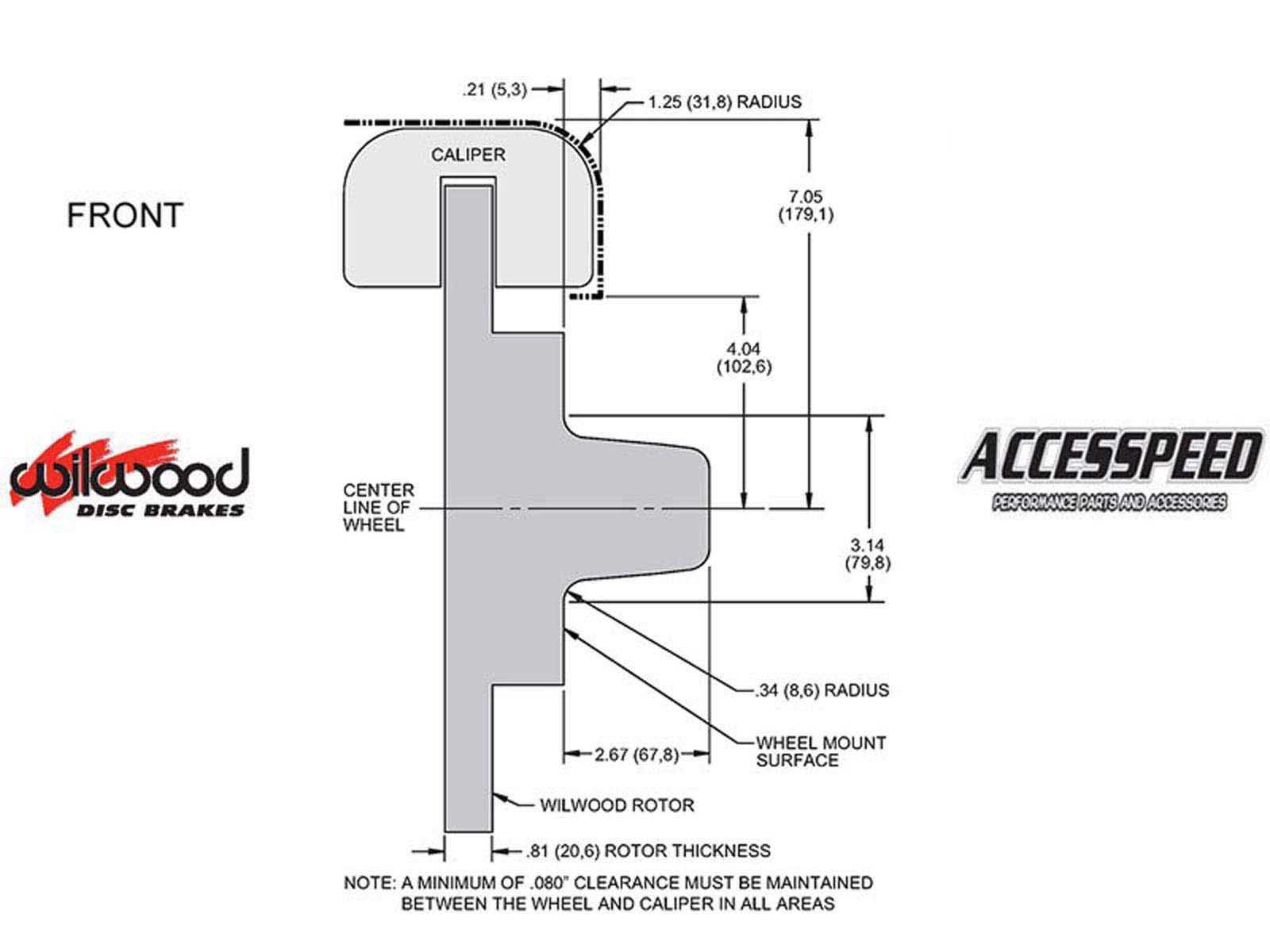

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

THIS BRAKE KIT HAS A HUB OFFSET OF: -.28  This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

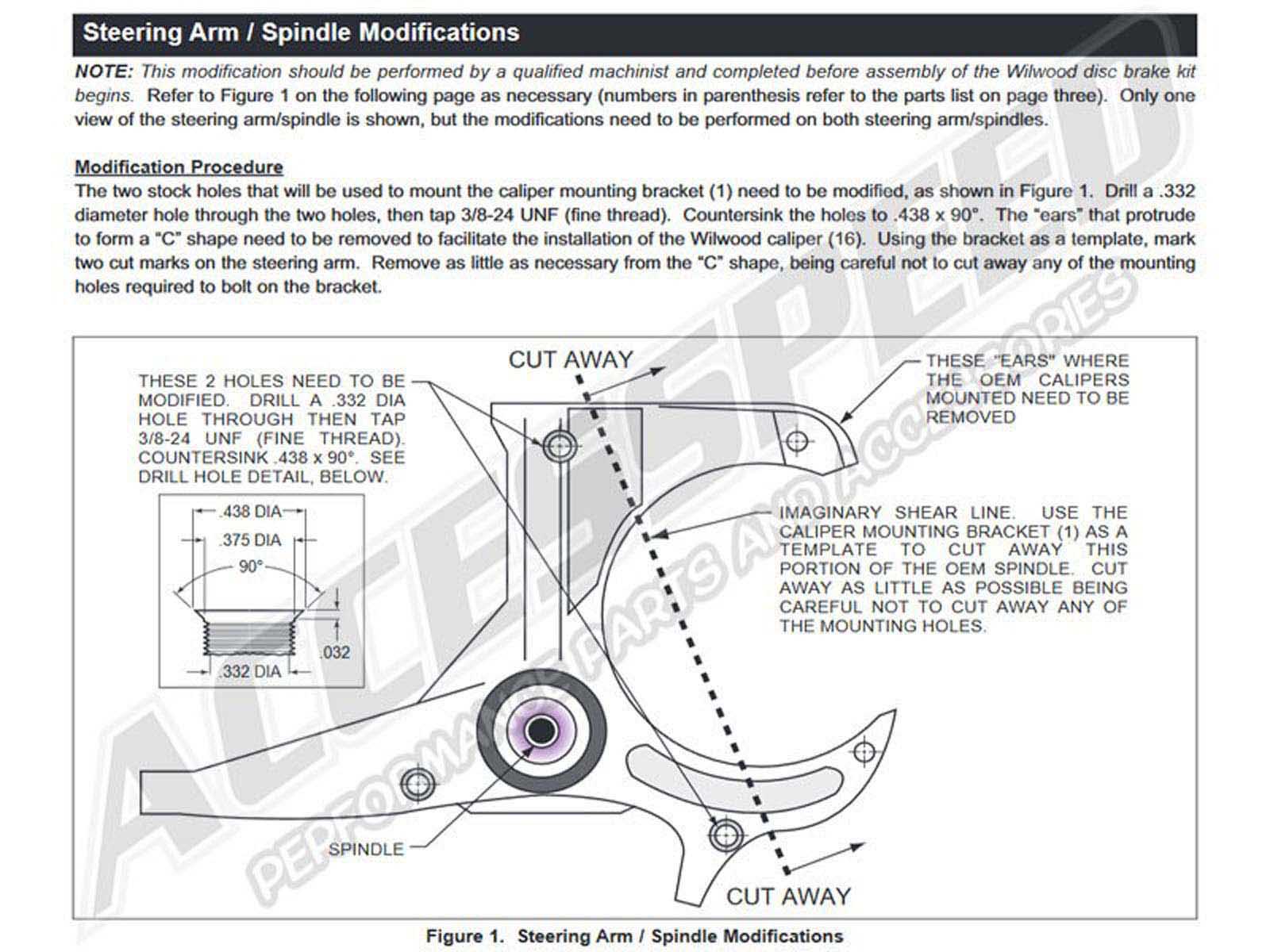

Front kits fit 11" rotor spindles only. Requires modifications to original spindle.

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
