Wilwood TX6R 15.5" Rear Big Brakes, Gray, Slotted Rotors & Brake Lines 2011-2019 GM 2500/3500

ACCESSPEED-WIL-GM2500-11-H Wilwood TX6R 15.5" Rear Big Brake Kit With Gray Anodized Calipers, Slotted Rotors, Brake Lines & Brake Fluid 2011 2012 2013 2014 2015 2016 2017 2018 2019 Silverado Sierra 2500/3500

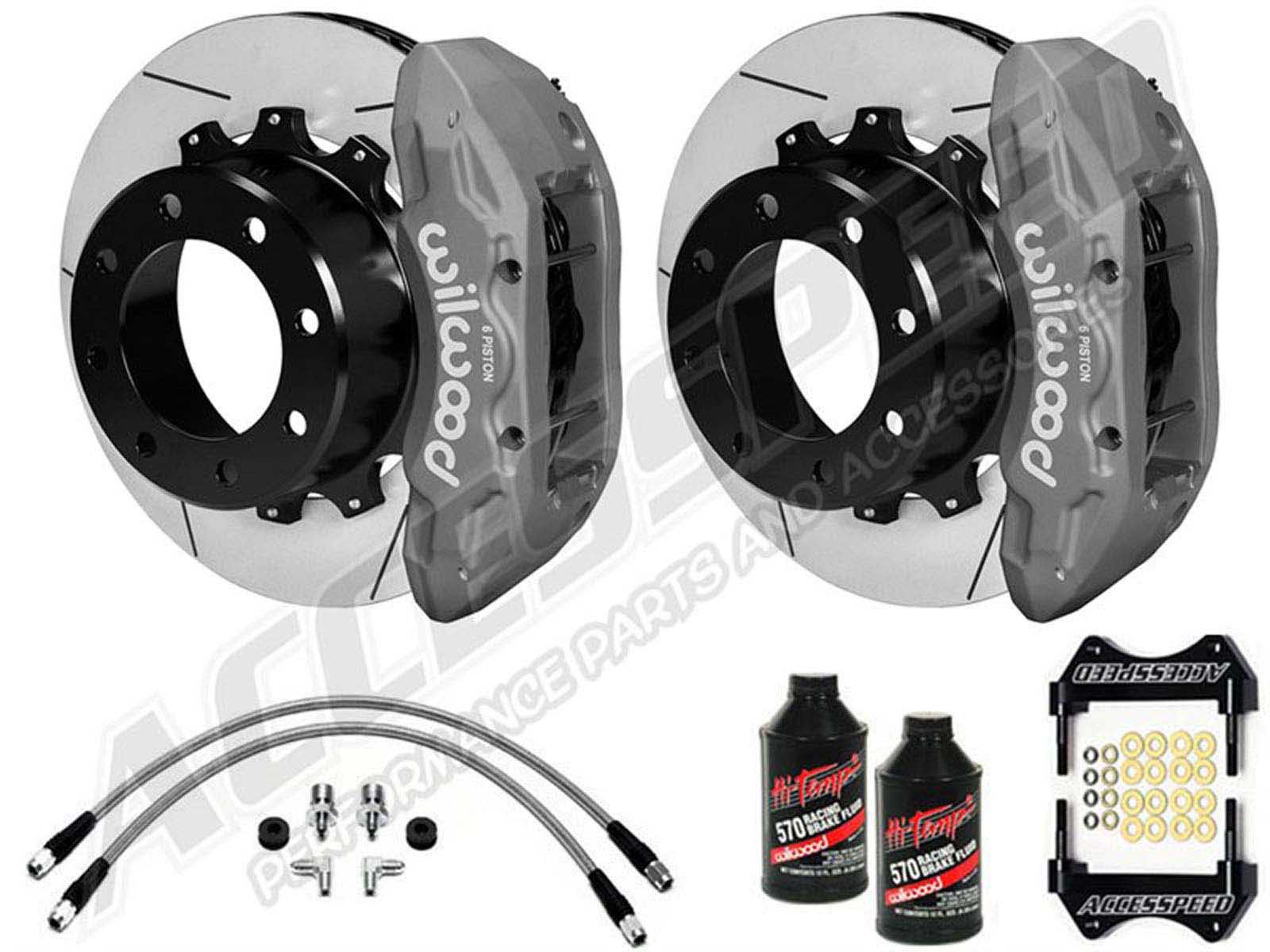

This is an all-inclusive Rear Big Brake Kit, with Rear Stainless Brake Lines, and 2 Bottles of Wilwood 570 Brake Fluid!

REAR:

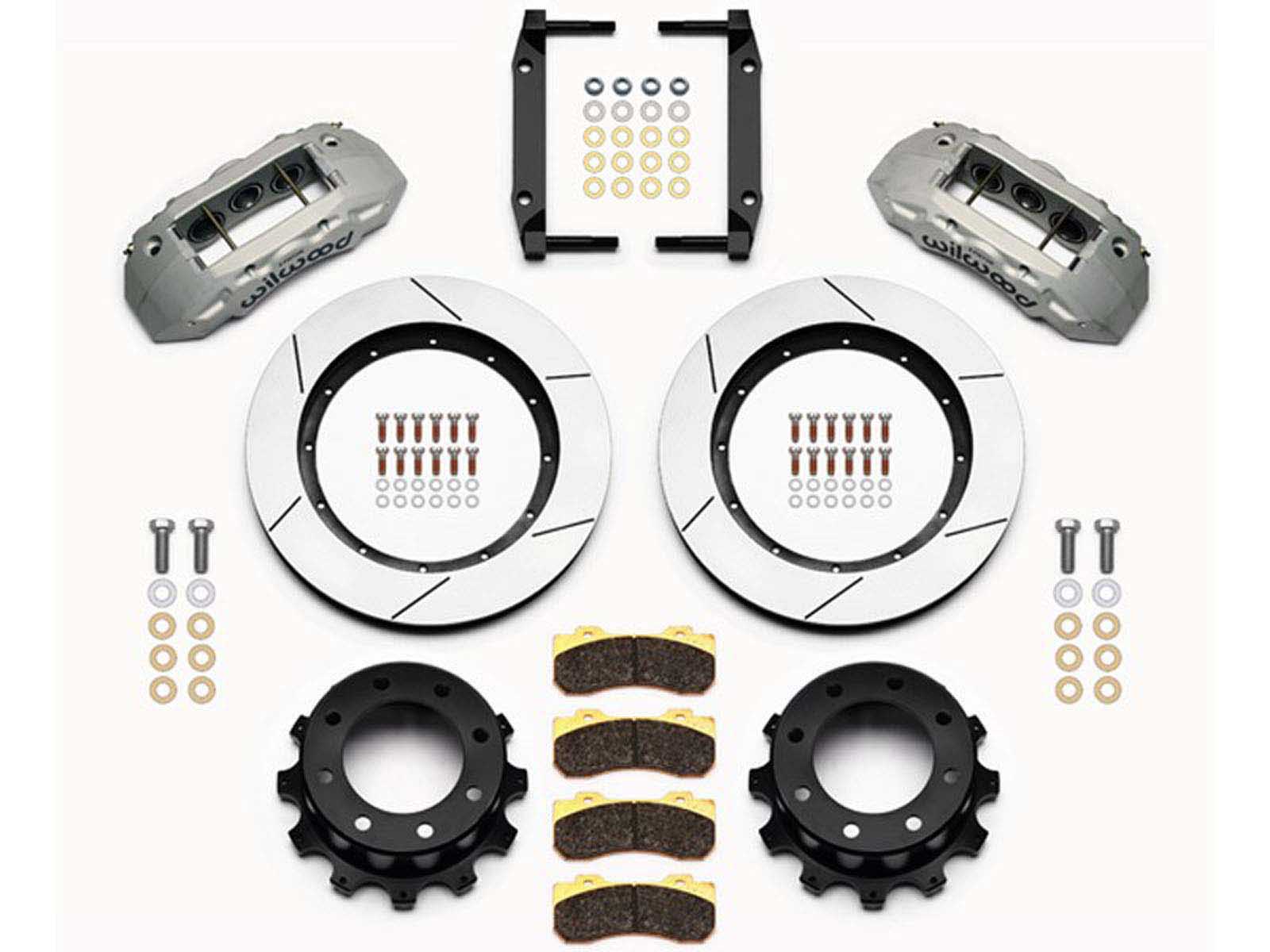

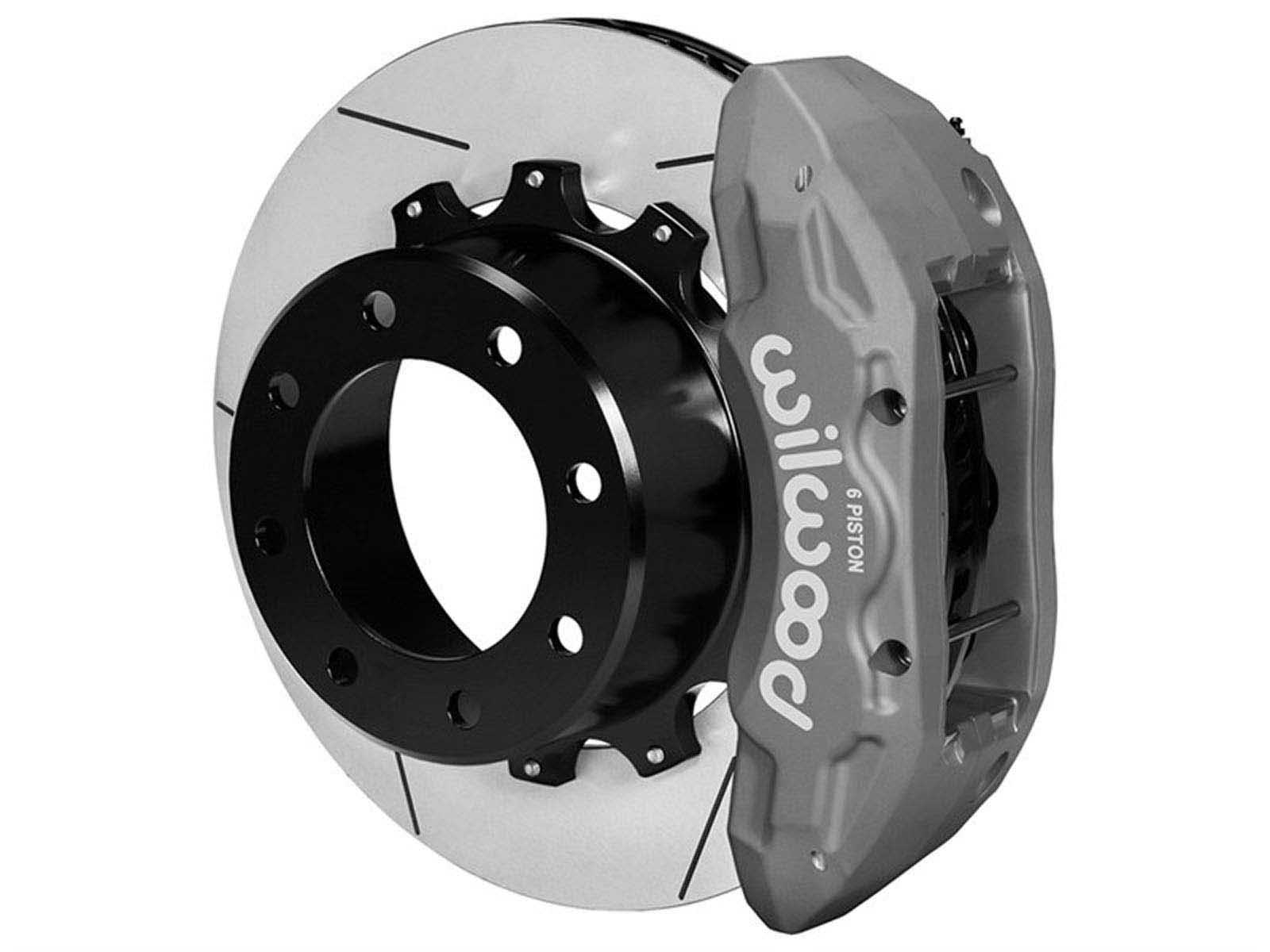

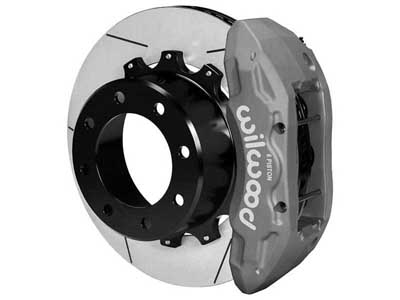

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.50” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

BRAKE LINES:

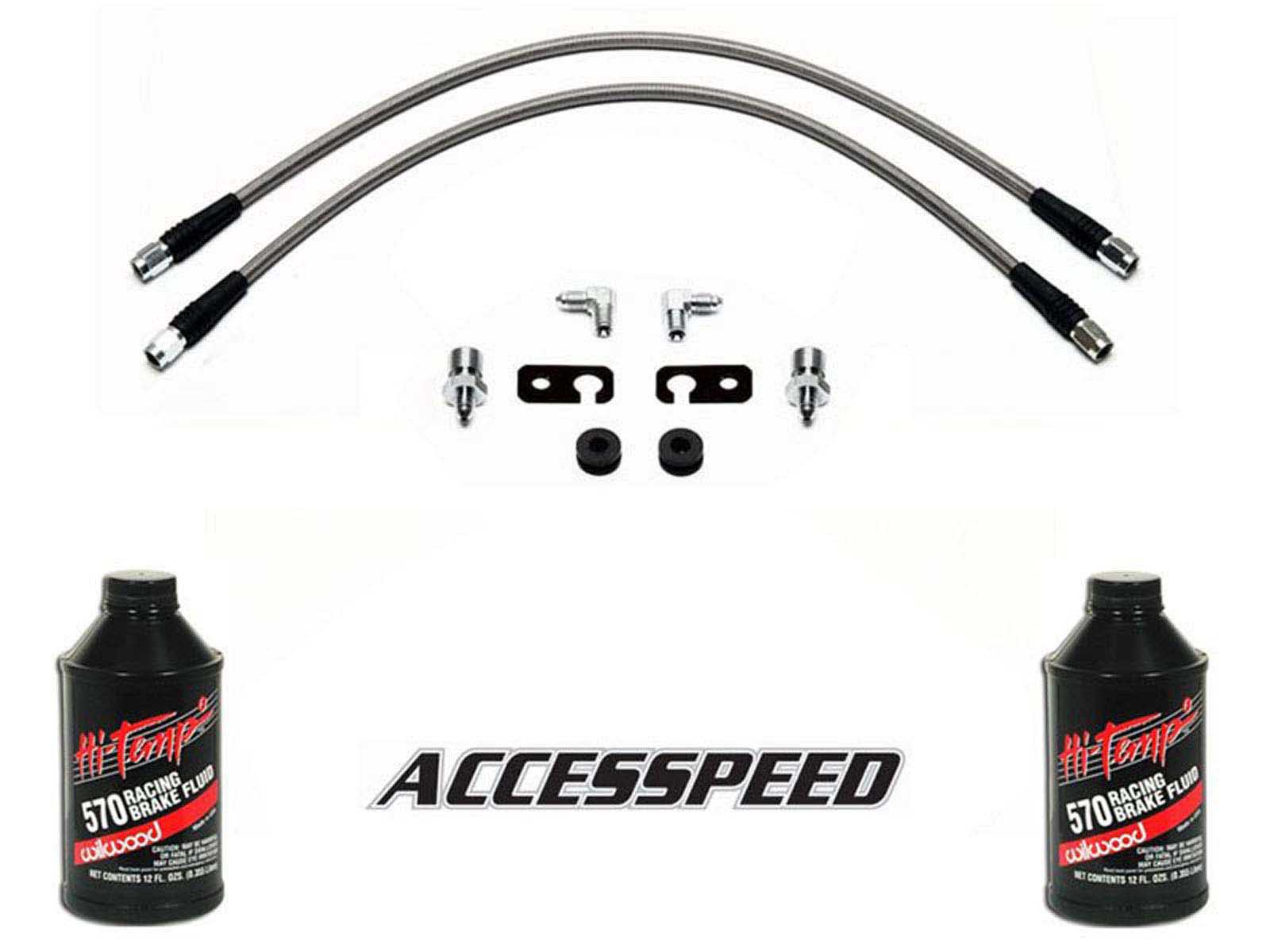

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

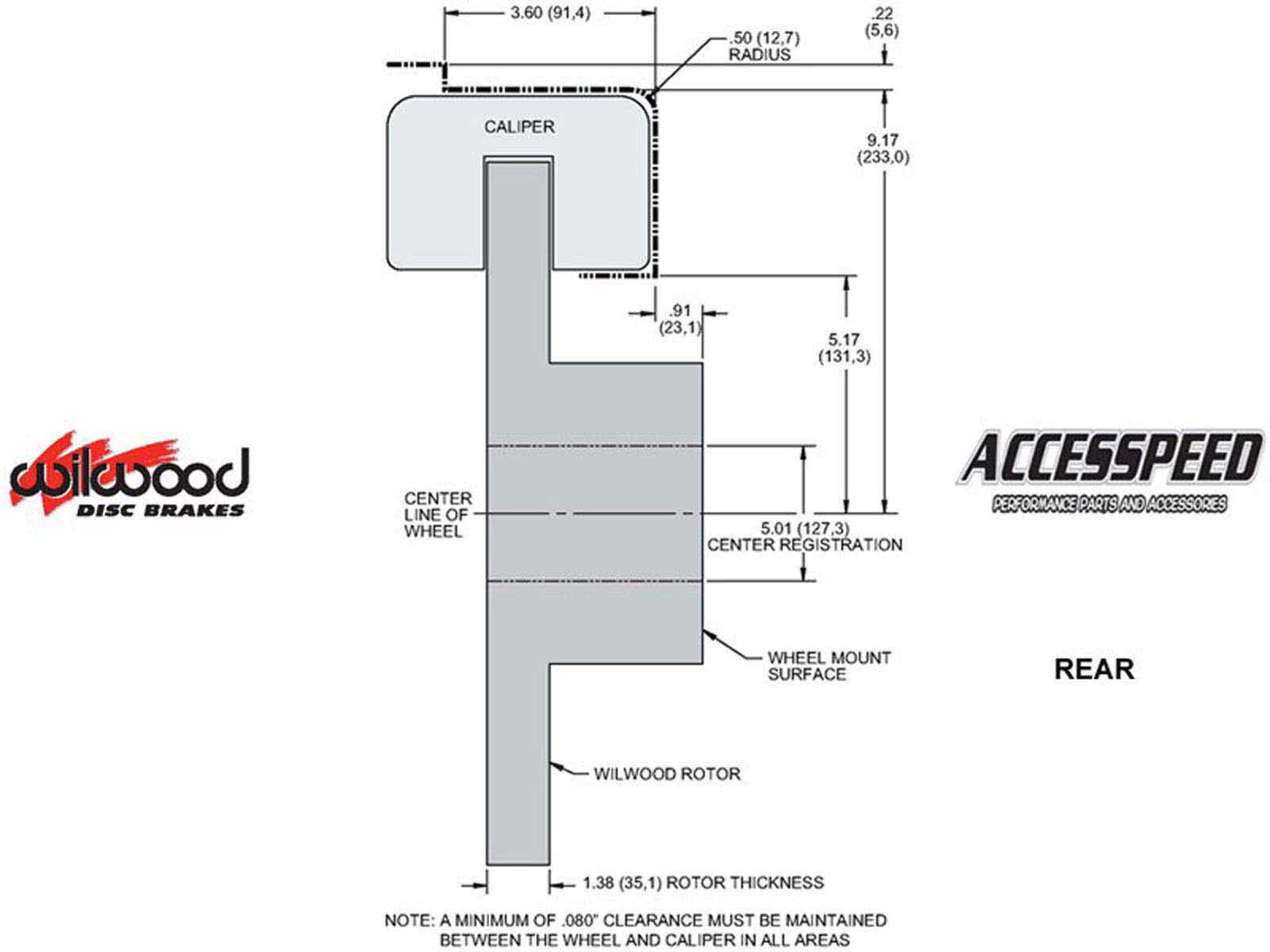

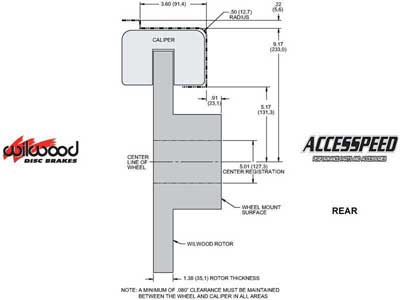

*This Brake Kit may require 20-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Gray Calipers. See separate listing for the red and black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

This kit is NOT compatible with NEWER model vehicles that are FACTORY-EQUIPPED with an all-electronic OEM parking brake. Installing this kit on a NEWER model vehicle may eliminate your parking brake. Wilwood is working on a kit for us, but there is currently no ETA.
